ROI signals and Filtering

Hi all,

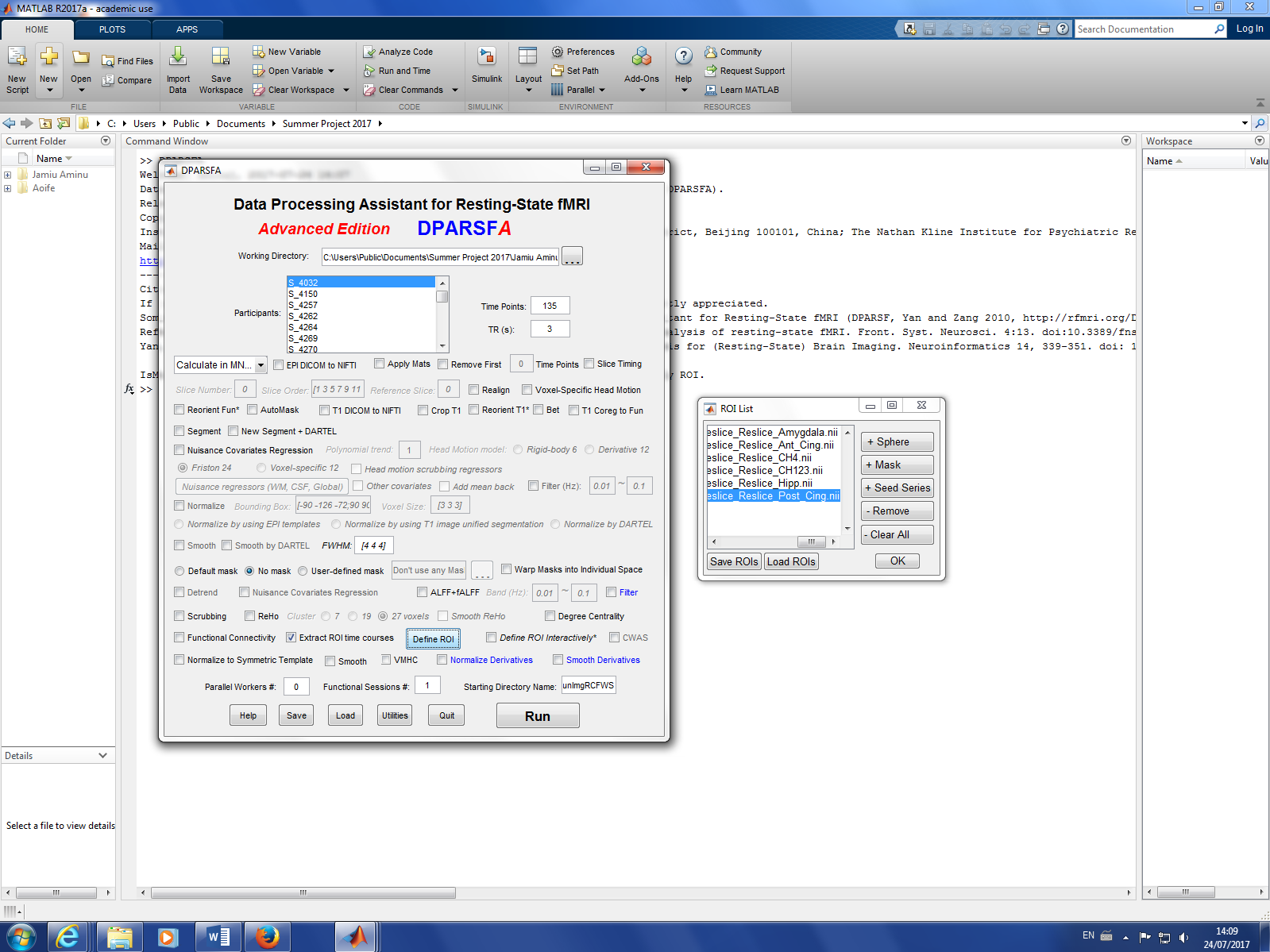

I just have a quick query, so I extracted ROI time course from 6 region. At the define ROI stage I added 6 masks and DPARSFA listed in alphabetical order. Whwn i got the results in the ROI signal folder I  have 6 list (6 time course from the masks I defined). My question is are these timecourse columns in order of the the way the mask were listed, so would my first time course be the signals for the first mask of the 6 and so on).

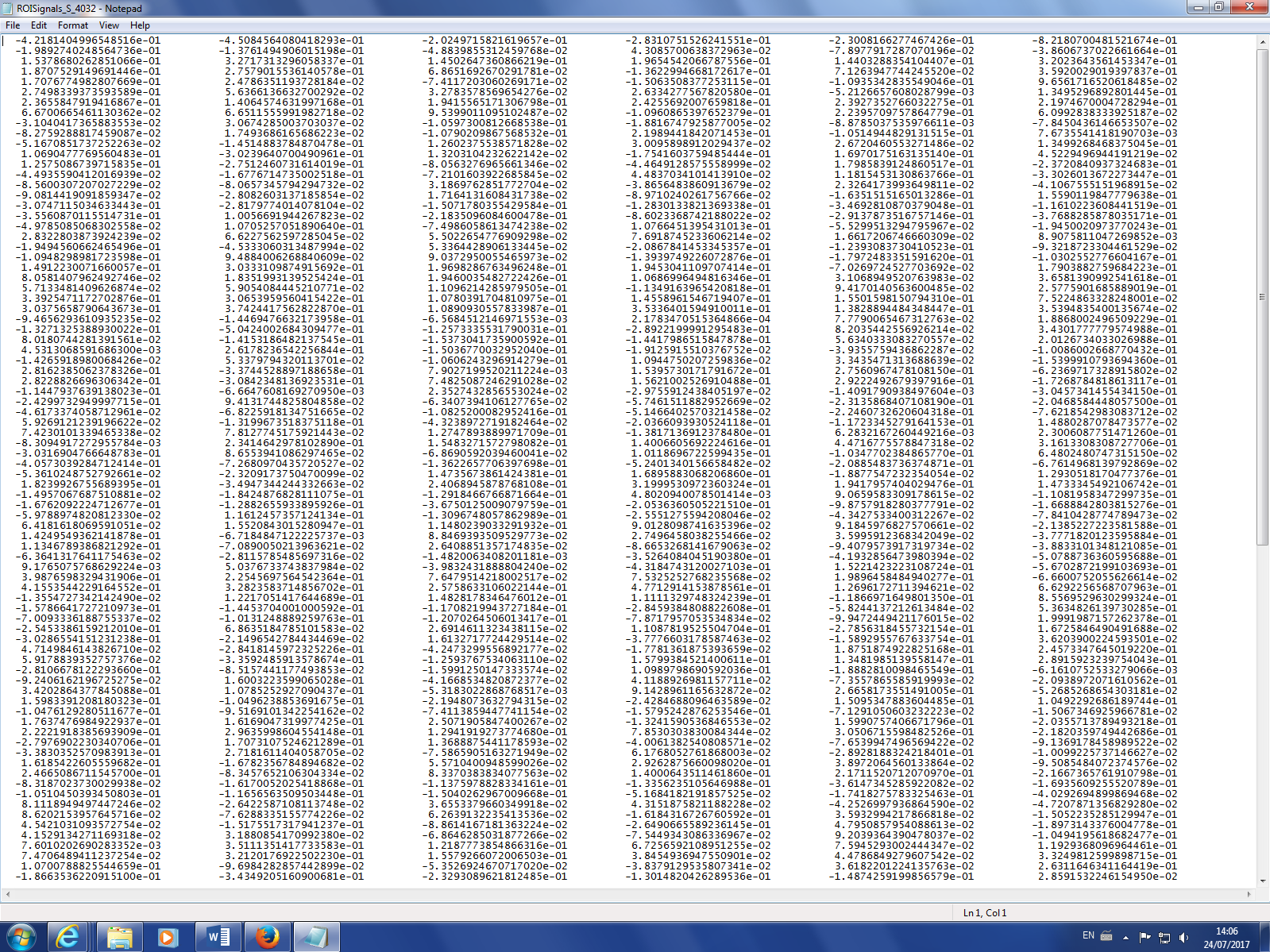

Also my DATA has been filtered in an earlier step (0.01 - 0.1) and yet my roi signals still exeed these limits. I have attached an images below.

my data was processedas follows: FunImgRCFWS

AttachmentSize
DPARSFA289.16 KB
ROI SignalS FROM 6 MASK331.95 KB

Forums:

yes, they are in your defined order, you should use data from another path named FunImgARCWF, F means filted.


-----原始邮件-----

发件人: "The R-fMRI Network" <rfmri.org@gmail.com>

发送时间: 2017年7月24日 星期一

收件人: rfmri.org@rnet.co

抄送:

主题: [RFMRI] ROI signals and Filtering

[To post a comment, please reply to rfmri.org@gmail.com ABOVE this line]


By Jamiu Aminu (aminuj)

Hi all,

I just have a quick query, so I extracted ROI time course from 6 region. At the define ROI stage I added 6 masks and DPARSFA listed in alphabetical order. Whwn i got the results in the ROI signal folder I  have 6 list (6 time course from the masks I defined). My question is are these timecourse columns in order of the the way the mask were listed, so would my first time course be the signals for the first mask of the 6 and so on).

Also my DATA has been filtered in an earlier step (0.1 - 1.0) and yet my roi signals still exeed these limits. I have attached an images below.

my data was processedas follows: FunImgRCFWS


Online version of this post: http://rfmri.org/content/roi-signals-and-filtering








Thank you for your response, really appreciate it,

Does the fact I did the filtering step earlier affect my BOLD signals? does this explain why I am getting higher and lower signals that (0.01 - 0.1)

would I get the same results I did the filtering step last? with my current processed data filtering was the third job RCFWS! should it be RCWSF?



You can have a look on RCWSF.

WS after F may introduce some outside frequency.
