Brodmann Atlas
In the early 20th century
German neurologist Dr.
Korbinian Brodmann defined 52 regions of the cerebral cortex of humans
and monkeys that
appeared to have different cellular morphology and organization.
Harvard-Oxford cortical and subcortical structural atlases
Probabilistic atlases covering 48 cortical and 21 subcortical
structural areas, derived from structural data and segmentations kindly
provided by the Harvard Center for Morphometric Analysis.
The latter Harvard-Oxford could be considered as an instance of Brodmann Atlas.
Moreover, someone argued that the Julich Atlases of Eickhoff/Amunts/Zilles/et al. may be the best Brodmann atlases. You could found more options in fsl. http://fsl.fmrib.ox.ac.uk/fsl/fslwiki/Atlases
On Sun, Mar 16, 2014 at 6:07 AM, The R-fMRI Network <rfmri.org@gmail.com> wrote:
Harvard－oxford atlas was developed for subdividing the human cerebral cortex on magnetic resonance images into gyral based regions of interest (ROIs). It was used in surface-space-based analysis (or fiber tracking in DTI), compared with the grey matter and white matter in volume space.
Neuroimage. 2006 Jul 1;31(3):968-80. Epub 2006 Mar 10. An automated labeling system for subdividing the human cerebral cortex on MRI scans into gyral based regions of interest.
On Mon, Mar 17, 2014 at 11:57 PM, The R-fMRI Network <rfmri.org@gmail.com> wrote:
Re: [RFMRI] 这两种皮层的模版用法上有什么不同？

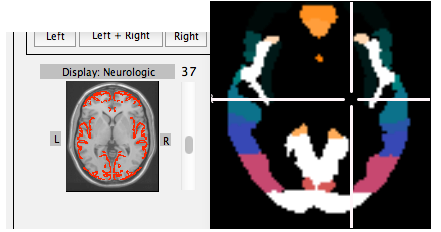

Harvard-Oxford cortical and subcortical structural atlases
Probabilistic atlases covering 48 cortical and 21 subcortical structural areas, derived from structural data and segmentations kindly provided by the Harvard Center for Morphometric Analysis.谢谢，我还想问，既然Harvard-Oxford
谢谢，我还想问，既然Harvard-Oxford could be considered as an instance of Brodmann Atlas
为什么两个模版harvard－oxford的模版呈一片的。，那不是除了皮层，又包括了白质了？
Re: [RFMRI] 这两种皮层的模版用法上有什么不同？
