DPARSFA预处理报错

Submitted by Yin on

  dear experts：

参数： 运行环境matlab2013a，spm8update ，试过spm12update, spm8 ,spm12; 也试过matlab2010a,都不能run。

Q1：如果把slice timing 这一步不勾选，则能够运行到normalize to MNI space，why?

Q2:运行到normalize to MNI space后没有报错，也不继续，怎么没有接着smooth，why？

谢谢~

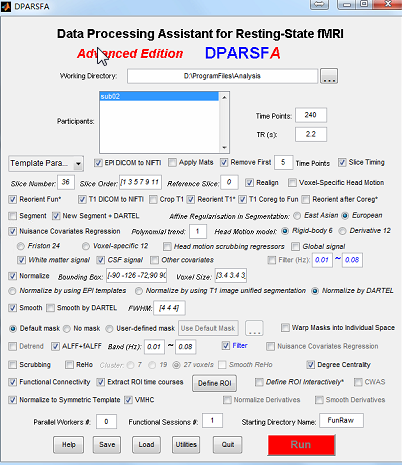

time points：240        TR:2.2    SLICE number：36     slice order:[1:2:35,2:2:36] (不太确定）   reference frame 不知道没填   voxel size:3.4x3.4x3   其他默认值，报错内容如下。



Chris Rorden's dcm2nii :: 1 April 2010

reading preferences file D:\ProgramFiles\DPARSF_V2.3_130615\dcm2nii\dcm2nii.ini
reading preferences file DCM2NII.INI
Validating 240 potential DICOM images.
Found 240 DICOM images.
Converting 240/240  240
461->20150922_094526ep2dpacemoco240v201509101s003a001A.nii
Saving D:\PROGRAMFILES\ANALYSIS\FUNIMG\SUB02\20150922_094526ep2dpacemoco240v201509101s003a001A.nii
Time elapsed 1544ms
Converting Functional Images:sub02 OK
Warning: Directory already exists.
> In DPARSFA_run>(parfor body) at 225
  In parallel_function at 473
  In DPARSFA_run at 223
  In DPARSFA>pushbuttonRun_Callback at 1601
  In gui_mainfcn at 96
  In DPARSFA at 33
Chris Rorden's dcm2nii :: 1 April 2010
reading preferences file D:\ProgramFiles\DPARSF_V2.3_130615\dcm2nii\dcm2nii.ini
reading preferences file DCM2NII.INI
Validating 176 potential DICOM images.
Found 176 DICOM images.
Converting 176/176  1
202->20150922_094526MPRAGE201509101s004a1001C.nii
Saving D:\PROGRAMFILES\ANALYSIS\T1IMG\SUB02\20150922_094526MPRAGE201509101s004a1001C.nii
Reorienting as D:\PROGRAMFILES\ANALYSIS\T1IMG\SUB02\o20150922_094526MPRAGE201509101s004a1001C.nii
Saving D:\PROGRAMFILES\ANALYSIS\T1IMG\SUB02\o20150922_094526MPRAGE201509101s004a1001C.nii
Cropping NIfTI/Analyze image D:\PROGRAMFILES\ANALYSIS\T1IMG\SUB02\o20150922_094526MPRAGE201509101s004a1001C.nii
Saving D:\PROGRAMFILES\ANALYSIS\T1IMG\SUB02\co20150922_094526MPRAGE201509101s004a1001C.nii
Time elapsed 920ms
Converting T1 Images:sub02 OK
??? Index exceeds matrix dimensions.

Error in ==> DPARSFA_run>(parfor body) at 553
                        delete(DirImg(j).name);

Error in ==> parallel_function at 491
            S = F(base, limit);

Error in ==> DPARSFA_run at 528
        parfor i=1:AutoDataProcessParameter.SubjectNum

Error in ==> DPARSFA>pushbuttonRun_Callback at 1601
    [Error]=DPARSFA_run(handles.Cfg);

Error in ==> gui_mainfcn at 96
        feval(varargin{:});

Error in ==> DPARSFA at 33
    gui_mainfcn(gui_State, varargin{:});

??? Error while evaluating uicontrol Callback

YAN Chao-Gan

Sat, 10/03/2015 - 13:16

Permalink

Hi,

From the error message:

Converting T1 Images:sub02 OK
??? Index exceeds matrix dimensions.



Seems there were some problems with the NifTI files. Could you check if there are any .hdr/.img files under FunImg?

Best,

Chao-Gan

Yin

Sun, 10/04/2015 - 12:24

Permalink

there is one img file under FunImg, it is a multi-volume file. it contains 240 imgs

No executable modules, but still unresolved dependencies or incomplete module inputs.
The following modules did not run:
Skipped: Slice Timing

Error using cfg_util (line 835)
Job execution failed. The full log of this run can be found in MATLAB command window, starting with
the lines (look for the line showing the exact #job as displayed in this error message)
------------------
Running job #1
------------------


Error in spm_jobman (line 217)


Error in DPARSFA_run>(parfor body) (line 696)


Error in DPARSFA_run (line 596)


Error in DPARSFA>pushbuttonRun_Callback (line 1674)


Error in gui_mainfcn (line 96)


Error in DPARSFA (line 30)


Caused by:
    Error using cfg_util (line 835)
    Job execution failed. The full log of this run can be found in MATLAB command window, starting
    with the lines (look for the line showing the exact #job as displayed in this error message)
    ------------------
    Running job #1
    ------------------


Error while evaluating uicontrol Callback
